Request / Apply Single License
To install the software-based HASP SL key for a single computer, you will receive a generated activation for STRAKON from the DICAD Systeme sales department.
See here:
Request a single license from the DICAD Systeme
1. Install STRAKON first.
2. Once installed, create a fingerprint (C2V file) from your computer using the RUS tool:
Run dongle test (Windows program group DICAD or in STRAKON via the ? menu) Launch from File > RUS tool
On the Statusinformationen abrufen tab, select Installation eines neuen Schutz-Keys Click Informationen abrufen
Select any destination path and enter a file name.
A C2V file is created, which you save and send to the sales department of the DICAD Systeme.
Apply license file
You will receive a V2C file with the generated activation back from the DICAD Systeme sales department. You can use this license on your own computer via the RUS tool as follows:
Run dongle test (Windows program group DICAD or in STRAKON via the ? menu)Launch from File > RUS toolSwitch to the Lizenzdatei anwenden tabUse Datei aktualisieren to select the V2C file received from sales departmentClick Update anwenden
The license file V2C has activated the HASP SL key on your computer and enabled STRAKON.

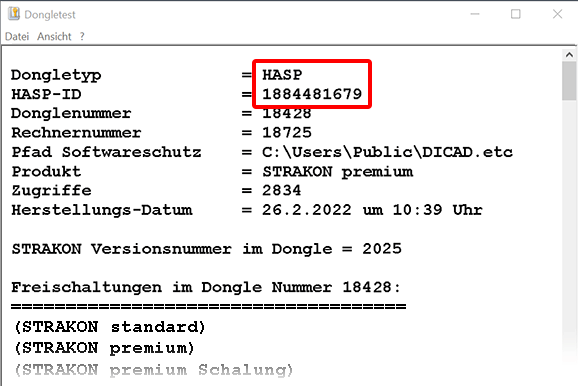

To check, you can use the dongle test (Start > Programs > DICAD 20XX > Dongle Test) to check whether licensing is applied:
