Drawing Texts Variables
? > Help window > Take over drawing texts menu
Key assignment: Key commands [Ctrl] + [Alt] + [I]
Drawing data
!110!60!112!113!1!2!3!4!111!72!73!80!22!26!27!103!81!6!7!99!8!9!100!5!11!10!101!102!61!21!24!23!16!17!18!19!20!201-!211!13!14!12!15

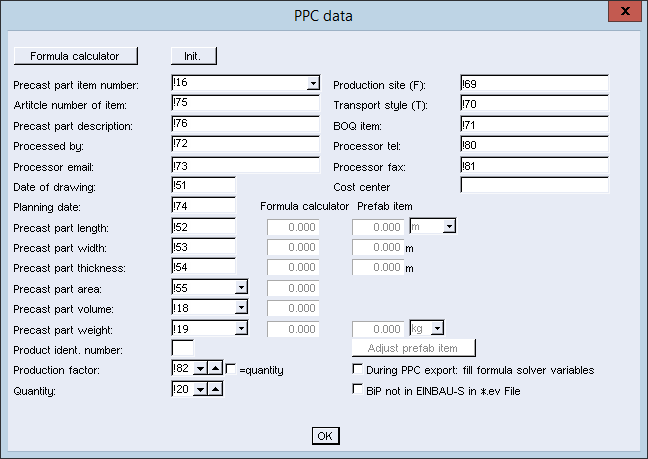

PPC data
!71!75!76!72!73!51!74!52!53!54!55!18!19!82!20!69!70!71!80!81
Drawing data
!1
drawing name
!2
contents
!3
drawing number 1
!4
drawing number 2
!5

axis/section

client:
!6
1st line
!7
2nd line
!99

3rd line

project:
!8
!9
!100

1st line
2nd line
3rd line
!72
author:
!73
e-mail
!80
telephone
!81

fax
!101
ASB-No. (construction number)
!102
ASB-No. (sub-construction number)
!103
drawn
!10
order number
!11
building section
!22
date
!26
index of drawing no. 1
!27
index of drawing no. 2
!60
working directory
!110
name of working directory incl. data path
!111
drawing status
!112
3D editing mode: Cube model or 3D segment
!113
drawing type: overview drawing or working drawing
Material data
!12
steel
!13
concrete
!14
concrete cover as well as laying dimension cv
!15
prestress
General data
!16
item
!17
PrefP-Type
!18
volume
!19
weight
!20
quantity
Free Texts
!201
Free texts 1
!202
Free texts 2
!203
Free texts 3
!204
Free texts 4
!205
Free texts 5
!206
Free texts 6
!207
Free texts 7
!208
Free texts 8
!209
Free texts 9
!210
Free texts 10
!211
Free texts 10
Measurements
!21
main scale

sheet dimension:
!23
!24
width
height
!61
sheet format
Additional data
!25
drawing size in m2
!28
drawing number 1 and index
!29
drawing number 2 and index
!30
max. rebar items
!31
max. mesh items
!32
total weight 1st steel grade
!33
total weight 2nd steel grade
!34
total weight 3rd steel grade
!35
total weight 4th steel grade
!36
mesh weight
!37
letter mesh weight
!38
total weight of chair mesh
!39
total length of 1st steel grade
!40
total length of 2nd steel grade
!41
total length of 3rd steel grade
!42
total length of 4th steel grade
!43
mesh area
!44
letter mesh area
!45
total length of chair mesh
!46
total weight of all steel
!47
total weight of all standard and special mesh
!48
total weight of all design mesh
!49
area of all design mesh
!51
PPC-Data: date of drawing
!52
PPC-Data: precast part length
!53
PPC-Data: precast part width
!54
PPC-Data: precast part thickness
!55
PPC-Data: precast part area
!62
rebar: missing item numbers (can be 78 chars. max.)
!63
link (aata area)
!64
total weight of all standard mesh
!65
total weight of all special and design mesh
!66
total weight of all standard, special and design mesh
!67
total weight rebar
!68
total weight prestressed steel
!69
PPC-Data: production site
!70
PPC-Data: transport style
!71
PPC-Data: BOQ item
!72
PPC-Data: processed by
!73
PPC-Data: draftperson email
!74
PPC-Data: planning date
!75
PPC-Data: article number of item
!76
PPC-Data: precast part description
!77
exposition class: reinforcement corrosion
!78
exposition class: concrete attack
!79
reproaching measure
!80
PPC-Data: processor fon
!81
PPC-Data: processor fax
!82
PPC-Data: production factor
!83-!85
PPC-Data: adress 1
!86-!88
PPC-Data: adress 2
!91
Total weight of all steel grades + total net weight of all standard meshes, special meshes and design meshes.
!92
Total weight of all steel grades and chair meshes + total net weight of all standard meshes, special meshes and design meshes.
!93
rebar: Missing item numbers. Only in connection with !62 usable.
!94
notices (can be 80 chars. max.)
!95
exact part weight (t)
!96
Stahlgewicht und Korbgewicht Flachstahl (kg)
!97
exposition class (Bewehrungskorrosion, Betonangriff)
!98
Average diameter [mm] related to the weight of the total rebar in the drawing
Other variables
!SEG;TEXT;
segment name
!SEG;MASS;
segment scale
!SEGxxx;MASS;
segment scale of a specific segment (xxx = desired segment number)

!DATE;YYYY;
!DATE;YYYY-MM;
!DATE;YYYY-MM-DD;
!DATE;YYYY-MM-DD HH;
!DATE;YYYY-MM-DD HH:MM;
!DATE;YYYY-MM-DD HH:MM:SS;
!DATE;YYYYMM;
!DATE;YYYYMMDD;
!DATE;YYYYMMDDTHHMMSS;
!DATE;DD.MM.YYYY;
!DATE;YYYY-WWW;
!DATE;YYYYWWW;
!DATE;YYYY-KWWW;
!DATE;YYYYKWWW;
!DATE;YYYY-MM-DD HH-MM;
!DATE;YYYY-MM-DD_HH-MM;
!DATE;YYYYMMDDTHHMM;
Year
Year-Month
Year-Month-Day
Year-Month-Day Hour
Year-Month-Day Hour:Minute
Year-Month-Day Hour:Minute:Second
YearMonth
YearMonthDay
YearMonthDay'T'HourMinuteSecond
Day.Month.Year
Year-'W'Week
Year'W'Week
Year-'CW'Week
Year'CW'Week
Year-Month-Day Hour-Minute
Year-Month-Day_Hour-Minute
YearMonthDay'T'HourMinute
2011
2011-09
2011-09-21
2011-09-21 12
2011-09-21 12:05 *
2011-09-21 12:05:24 *
201109
20110921
20110921T120524
21.09.2011
2011-W38
2011W38
2011-KW38
2011KW38
2011-09-21 12-05
2011-09-21_12-05
20110921T1205

* These formats must not be used for the generation of file names because they contain the special character ":".
